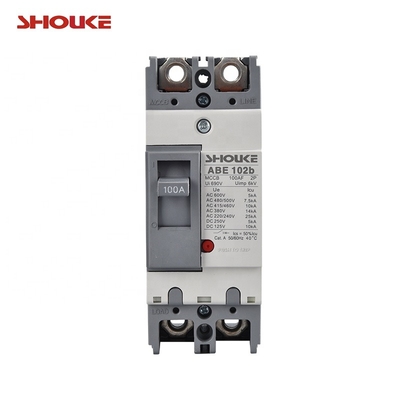

Power control panel ABE102b 100A 2P molded case circuit breaker ABE DP mccb 60amp 2 pole wall switch residential electrical switch

1 Piece
MOQ
$5.00(1 - 499 Pieces) $4.50(500 - 1999 Pieces) $4.30(>=2000 Pieces)
Price
Power control panel ABE102b 100A 2P molded case circuit breaker ABE DP mccb 60amp 2 pole wall switch residential electrical switch
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 100AF
Rated Voltage: 30/440V
Rated Current: 100a
Product Name: MCCB
Rated Voltage: 230/400V AC
Breaking Capacity ICU: 10kA
Application: Power Control Panel
Type: Moulded Case
Poles Number: 2
Basic Infomation
Model Number: 100AF
Payment & Shipping Terms
Packaging Details: inner box and carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description

PRODUCT PARAMETERS

ABE data
Frame (AF)

100
Breaking capacity (kA), Icu 415VAC 10
Pole (P) 2,3,4
Type ABE102b
ABE103b
ABE104b
Rated current (A) 60,75,100
Technical parameter IEC/EN60947-2
Rated voltage (V), Ue (50/60Hz) 600
Rated voltage (V), Ue (DC) 250
Rated insulation voltage (V), Ui (50/60Hz) 690
Rated pulse voltage (kV), Uimp 6
Extreme short-circuit breaking capacity[Icu](kA) AC 50/60Hz 220V/240V 25
380V 14
415V 10
440/460V 10
480/500V 7.5
600V 5
DC 125V 10
250V 5
Service breaking capacity[Ics=%Icu] 50
Endurance(Durability) Mechanical 8500
Electrical 1500
Accessory
Internal Auxiliary AUX √
Alarm switch ALT √
Shunt trip SHT √
Under voltage trip UVT √
External Rotary Handle √
Insulation terminal cover √
Insulation barrier √
Wiring behind the board √
Installation and Dimensions
Dimensions(mm)W*H*D 75*130*60
Weight(kg) 2/3/4P 0.45/0.65/0.85
