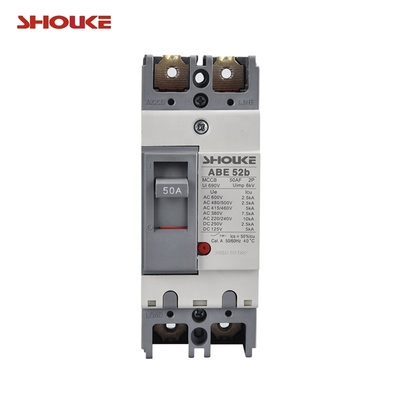

Power Control Panel ABE52b 2P Cast Case Circuit Breaker ABE DP mccb 15amp 20amp 30amp 40amp 50amp 2 Pole For Residential Electrical Cutout

1 Piece
MOQ
$10.00(1 - 499 Pieces) $9.00(500 - 1999 Pieces) $8.50(>=2000 Pieces)
Price
Power Control Panel ABE52b 2P Cast Case Circuit Breaker ABE DP mccb 15amp 20amp 30amp 40amp 50amp 2 Pole For Residential Electrical Cutout
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 125AF N-type
Rated Voltage: 380/440V
Rated Current: 15a 20a 30a 40a 50a
Product Name: MCCB
Rated Voltage: 230/400V AC
Breaking Capacity ICU: 10kA
Application: Power Control Panel
Type: Moulded Case
Poles Number: 2
Basic Infomation
Model Number: 125AF N-type
Payment & Shipping Terms
Packaging Details: inner box and carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description

PRODUCT PARAMETERS

ABE data
Frame (AF) 50
Breaking capacity (kA), Icu 415VAC 5
Pole (P) 2,3
Type ABE52b
ABE53b
Rated current (A) 15,20,30,40,50
Technical parameter IEC/EN60947-2
Rated voltage (V), Ue (50/60Hz) 600
Rated voltage (V), Ue (DC) 250
Rated insulation voltage (V), Ui (50/60Hz) 690
Rated pulse voltage (kV), Uimp 6
Extreme short-circuit breaking capacity[Icu](kA) AC 50/60Hz 220V/240V 10
380V 7.5
415V 5
440/460V 5
480/500V 2.5
600V 2.5
DC 125V 5
250V 2.5
Service breaking capacity[Ics=%Icu] 50
Endurance(Durability) Mechanical 8500
Electrical 1500
Accessory
Internal Auxiliary AUX √
Alarm switch ALT √
Shunt trip SHT √
Under voltage trip UVT √
External Rotary Handle √
Insulation terminal cover √
Insulation barrier √
Wiring behind the board √
Installation and Dimensions
Dimensions(mm)W*H*D 75*130*60
Weight(kg) 2/3P 0.45/0.65
