Home /Products/Vacuum Circuit Breaker/Indoor Side Type VCB 12kV 24kv Vacuum Circuit Breaker VS1 VS1

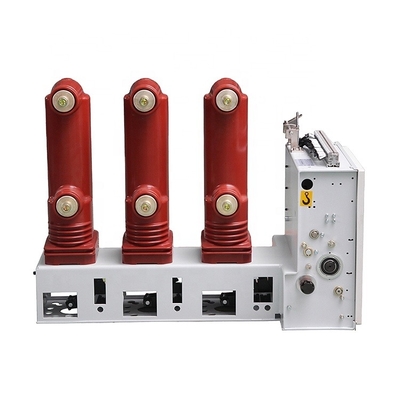

Indoor Side Type VCB 12kV 24kv Vacuum Circuit Breaker VS1 VS1

1.0 unit
MOQ
Indoor Side Type VCB 12kV 24kv Vacuum Circuit Breaker VS1 VS1
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: VS1
Product Name: VCB
Standard: IEC62271
Electrical Life(Time): 10000times
Type: Vacuum
Poles Number: 3
Basic Infomation
Model Number: VS1
Payment & Shipping Terms
Packaging Details: Standred Export Wooden Carton
Supply Ability: 100 Unit/Units per Week
Product Description
Product Description
Specification
Rated voltage
kV
12
24
Rated insulation level
Power frequency withstand voltage (1min)
kV
42/48
65/79
Lighting impulse withstand voltage (peak)
kV
75/85
125/145
Rated current
A
630-4000
630-3150
Rated short-time withstand current
kA
25-40
25-40
Rated peak withstand current
kV
63-100
63-100
Rated short-circuit breaking current
kA
25-40
25-40
Rated short-circuit making current
kA
63-100
63-100
Rated frequency
Hz
50
50
Secondary circuit rated short-time withstand voltage（1min）
kV
2
2
Secondary circuit rated voltage
V
DC110、220 / AC110、220
DC110、220 /
 AC110、220
